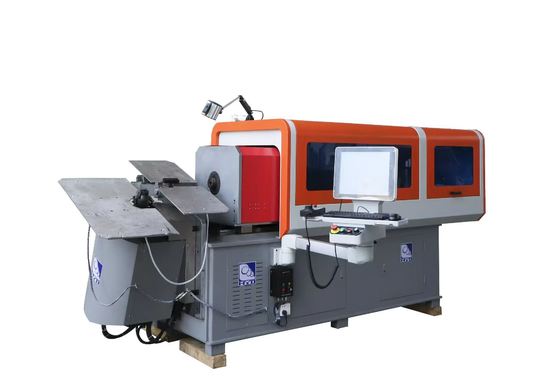

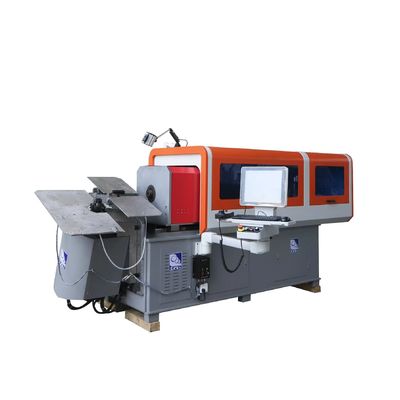

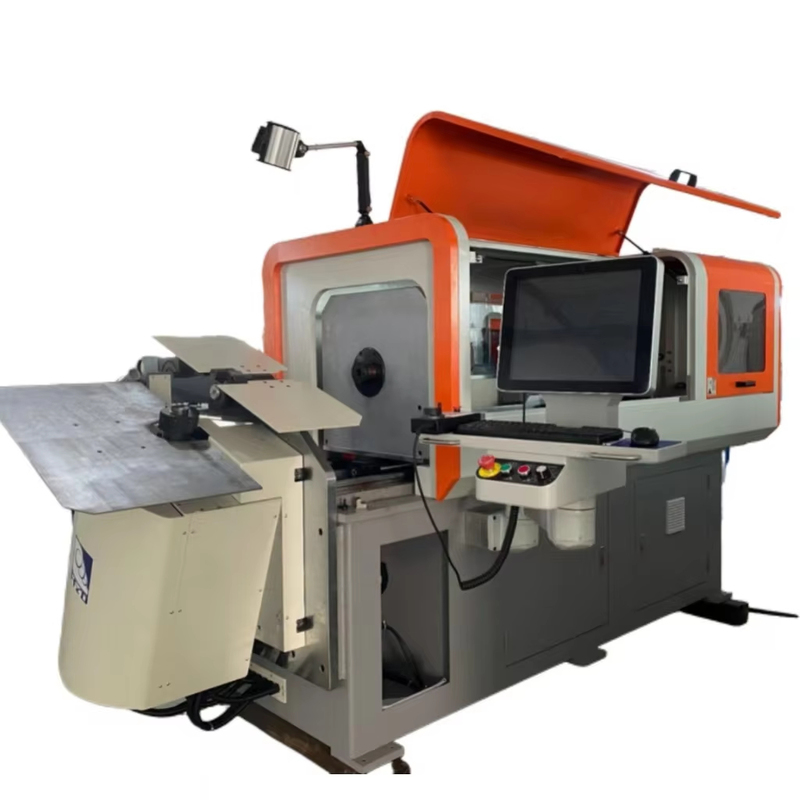

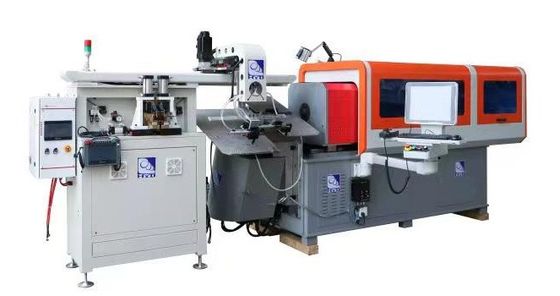

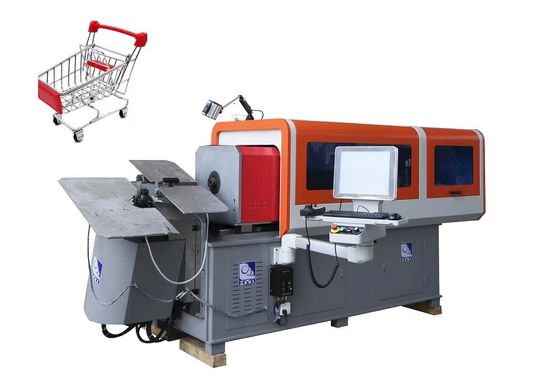

Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	HYD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

Berat:	3600 kg	Voltase:	380 v
Kekuatan:	20,8-26,5kW	Ukuran kawat:	3.0-10.0mm TS≤500N
Servo Motors:	8-10 sumbu	Sistem Kontrol:	Komputer CNC khusus
Pakan kawat maks:	10.000,0mm	Feed kawat min:	0,01 mm
Kecepatan Kawat Maks:	>70 m/mnt	Tekanan udara:	5-6KG/CM²
Jumlah penyelidikan:	2	Ukuran mesin:	P3800L1100T1680 MM
Merek Motor:	Sanyo/Yaskawa	Catu daya:	3 fase, 380V
Panjang Umpan Kawat:	tak terbatas
Menyoroti:	8-10axes Servo Motors 3D Wire Bending Machine , 3.0-10.0mm Wire Size Wire Bending Machine , 20.8-26.5kw Power CNC Wire Bender

High Quality Wire Type 3D Wire Bending Machine for Industrial Wire Processing

Technical Specifications

Model	HYD-WR9A-100	HYD-WR10A-100	HYD-WR10A-80
Wire Size	φ3.0-φ10.0mm TS≤500N	φ3.0-φ10.0mm TS≤500N	φ2.0-φ8.0mm TS≤500N
Servo Motors	9 axes	10 axes	10 axes
Control System	Dedicated CNC Computer	Dedicated CNC Computer	Dedicated CNC Computer
Motor Brand	Sanyo/Yaskawa	Sanyo/Yaskawa	Sanyo/Yaskawa
Max Wire Feed	10000.0mm	10000.0mm	10000.0mm
Min Wire Feed	0.01mm	0.01mm	0.01mm
Max Wire Speed	>70m/min	>70m/min	>60m/min
Wire Feed Length	unlimited	unlimited	unlimited
Power	3phase, 380V	3phase, 380V	3phase, 380V
Air Pressure	5-6KG/CM²	5-6KG/CM²	5-6KG/CM²
Probe	2	2	2
Machine Size	L3800W1100H1680MM	L3800W1100H1680MM	L3800W1100H1680MM

Product Images

Application Scenarios

Product Categories

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
