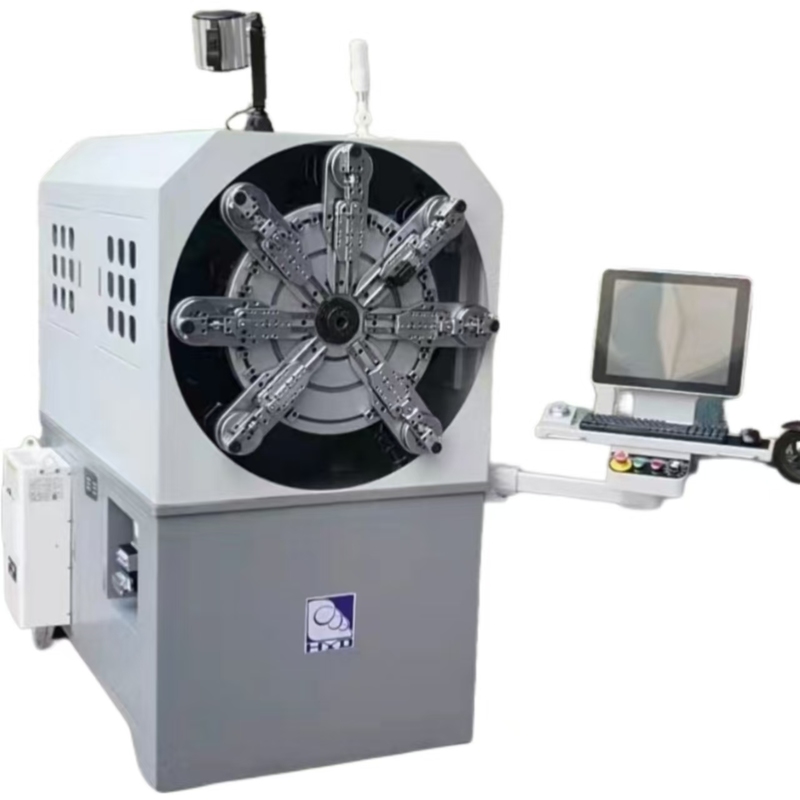

Multi-Function CNC Spring Machine with 12 Axes Servo Motors 0.3-2.5mm Wire Size and 9.35kw Power

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	HYD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

Berat:	900 kg	Voltase:	380 v
Kekuatan:	9,35 kW	Ukuran kawat:	0,3-2,5 mm
Servo Motors:	12 sumbu	Kecepatan Kawat Maks:	110 m/mnt
Penyimpanan Program:	1000	Rel timbal:	Tineraries 80mm
Roller umpan kawat:	4 pasang	Kesalahan Maksimum:	± 0,03 (panjang)
Merek Motor:	SANYO	Panjang malaikat terpendek:	4 kali diameter kawat
Catu daya:	380V±10% V50Hz	Decoiler:	500 kg
Ukuran mesin:	L1700W1150H1700 mm
Menyoroti:	12 Axes Servo Motors CNC Spring Machine , 0.3-2.5mm Wire Size Computer Spring Machine , 9.35kw Power Camless Spring Machine

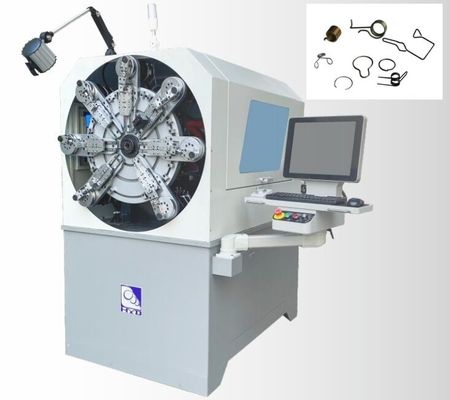

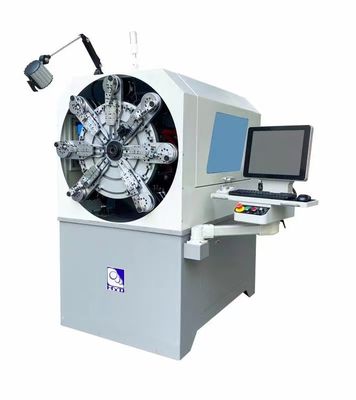

Multi-Function Computer Spring Machine Camless Spring Machine HYD-25T-12A

Product Description

The HYD-25T series represents advanced computer-controlled spring machines with high precision and efficiency for industrial spring manufacturing.

Technical Specifications

Model	HYD-25T-10A	HYD-25T-12A
Wire Size	0.3-2.5mm	0.3-2.5mm
Servo Motors	10 axes	12 axes
Lead Rail	tineraries 80mm	tineraries 80mm
Wire Feed Roller	2 Pairs	4 Pairs
Maximum error	±0.03(Length)	±0.03(Length)
MaxWire Feed Speed	110m/min	110m/min
Motor Brand	Sanyo	Sanyo
Shortest Angel Length	4 Times Wire Diameter	4 Times Wire Diameter
Power Supply	380V±10%V50Hz	380V±10%V50Hz
Decoiler	200KG	500KG
Machine Dimension	900KG	1300KG
Machine Size	L1400W950H1700MM	L1700W1150H1700MM

Product Images

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment term.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
