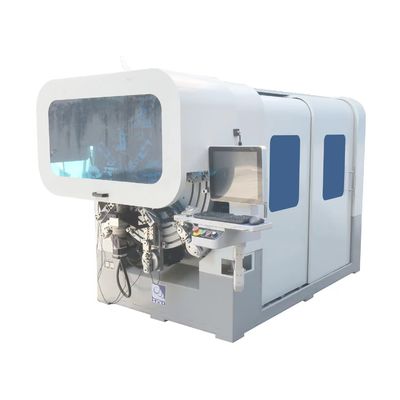

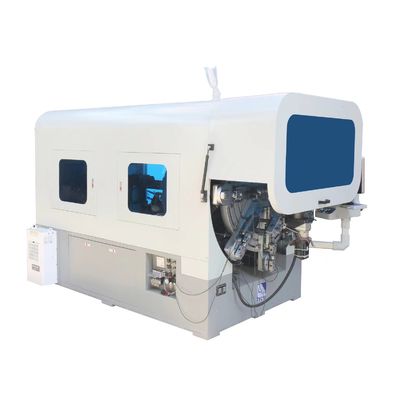

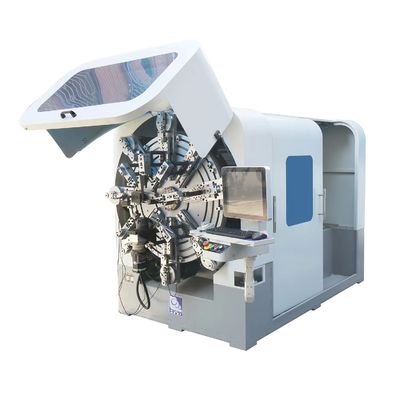

Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power

Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power

  • Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
  • Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
  • Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
  • Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
  • Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
  • Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power
Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: HYD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak
Detil Deskripsi produk
Berat: 3200 kg Voltase: 380 v
Kekuatan: 27 Kw Ukuran kawat: Baja rendah karbon: 2-6mm, baja karbon tinggi: 1-4mm
Servo Motors: 12 sumbu Kecepatan Kawat Maks: 100 m/mnt
Roller umpan kawat: 4 pasang Kesalahan Maksimum: ± 0,15 (panjang)
Sistem Kontrol: 1set Decoiler: 300kg
Peredam: 10 pcs Tenaga motor servo: 21,5kw
Merek Motor: SANYO Panjang malaikat terpendek: 4 kali diameter kawat
Ukuran mesin: L1100*W1450*H2000mm
Menyoroti:

1-4mm & 2-6mm Computer Spring Coiling Machine

,

100m/min Speed CNC Spring Machine

,

380V Power Automatic Spring Coiling Machine

Automatic Multi-Function 12 Axes Computer Spring Coiling Machine
High-precision computer-controlled spring coiling machine with 12-13 axes servo control for versatile spring production in wire diameters of 1-4mm and 2-6mm.
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 0 Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 1
Technical Specifications
Model HYD-42T-12A HYD-42T-13A
Wire Size Low-carbon Steel: 2-6mm
High-carbon Steel: 1-4mm		 Low-carbon Steel: 2-6mm
High-carbon Steel: 1-4mm
Servo Motors 12 axes 13 axes
Lead Rail tineraries 120mm tineraries 120mm
Wire Feed Roller 4 Pairs 4 Pairs
Maximum error ±0.15 (Length) ±0.15 (Length)
Max Wire Feed Speed 100m/min 100m/min
Control System 1SET 1SET

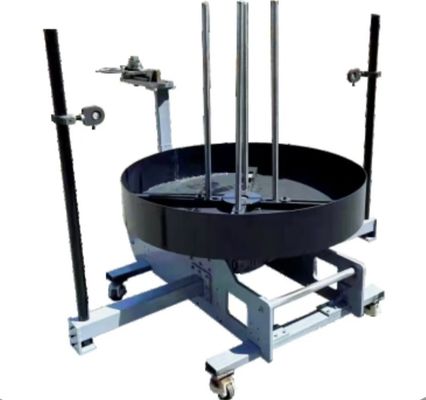

Decoiler 300KG 500KG
Reducer 10PCS 11PCS
Servo Motor Power 21.5KW 27KW
Motor Brand Sanyo Sanyo
Shortest Angel Length 4 Times Wire Diameter 4 Times Wire Diameter
Power Supply 380V±10%V 50Hz 380V±10%V 50Hz
Machine Weight 2500KG 3200KG
Machine Size L1100×W1450×H2000MM L2100×W2050×H2000MM
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 2 Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 3 Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 4 Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 5
Application Scenarios

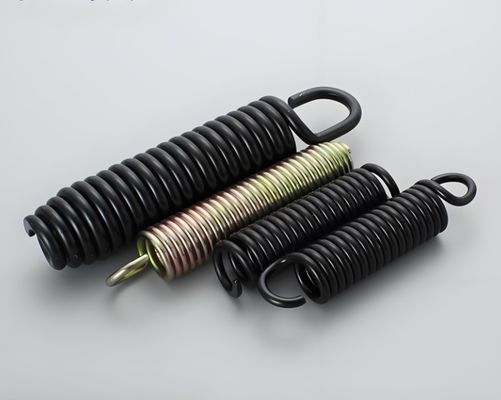

This multi-function computer spring machine is ideal for producing various types of springs including compression springs, torsion springs, and wire forms for automotive, electronics, and industrial applications.
Automatic Multi-Function 12 Axes Computer Spring Coiling Machine for 1-4mm & 2-6mm Wire with 100m/min Speed and 380V Power 6
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: We provide comprehensive machine catalogs. Please specify your product requirements for the most relevant information.
Q2: Do you accept OEM?
A2: Yes, we can produce custom designs according to your specifications.
Q3: Can it be configured with something else?
A3: The machine can be customized to meet specific product requirements.
Q4: Are you a factory?
A4: We are a factory-direct manufacturer and welcome visits to our production facility.
Q5: What information is needed for an accurate quotation?
A5: Please provide drawings, pictures, voltage requirements, planned output, and technical specifications.
Q6: What is the power supply requirement?
A6: Standard configuration is 380V, 3P, 50Hz, with customization options available.
Q7: What are the payment terms?
A7: Standard terms are 30% deposit with 70% balance before shipment, with flexible options available.
Q8: What is the delivery time?
A8: Typical production time is 30 days after deposit receipt, varying by machine model.
Q9: What is the warranty period?
A9: One year warranty from the bill of lading date.
Q10: What is the minimum order quantity?
A10: One machine, customized to your specific requirements.
