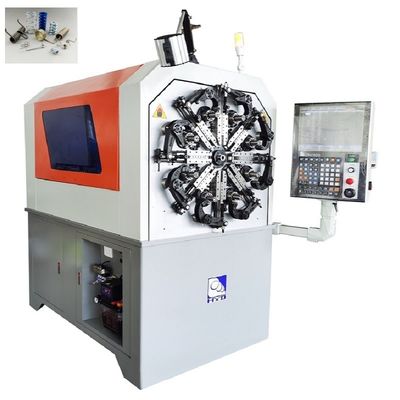

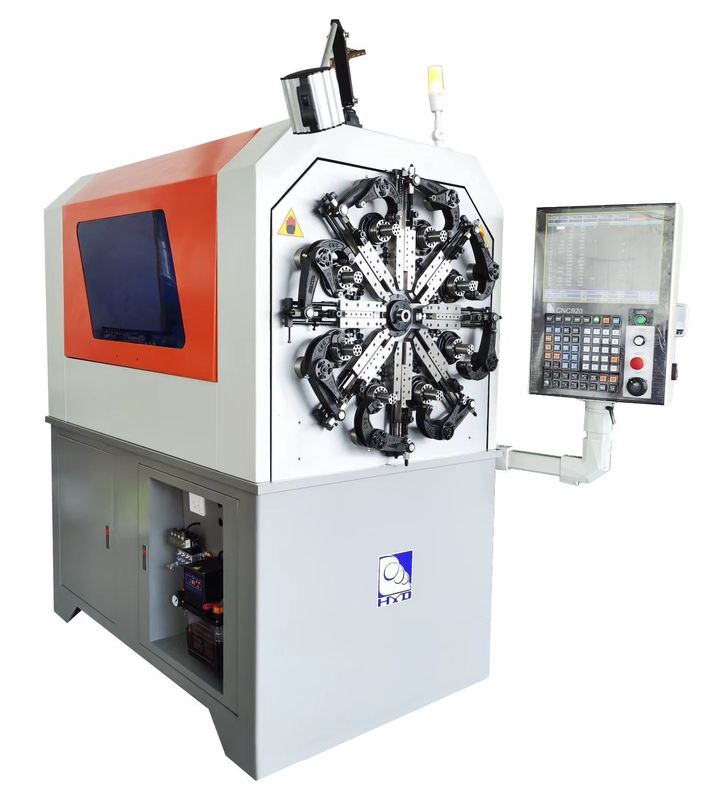

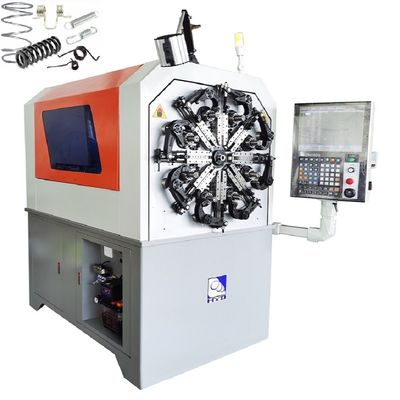

Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume

Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume

  • Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
  • Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
  • Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
  • Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
  • Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
  • Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
Factory Direct 20T-5A CNC Spring Coiling Machine with 141m/min Max Wire Speed and 1000 Program Storage Volume
Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: HYD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak
Detil Deskripsi produk
Berat: 700 kg Voltase: 380 v
Kekuatan: 2,7 kW Ukuran kawat: 0.2-2.3mm
Servo Motors: 5 sumbu Kecepatan Kawat Maks: 141m/menit
Penyimpanan Program: 1000 Motor Sumbu X: 2.7kw
Motor sumbu y: 2.7kw Motor sumbu z: 1.0KW
Motor sumbu a: 0.4kw Motor b-sumbu B.: 2.7kw
Kapasitas dekoiler: 300kg Dimensi mesin: L1600*W950*H1900mm
Catu daya: Tegangan 380V+10%V50Hz
Menyoroti:

20T-5A CNC Spring Coiling Machine

,

141m/min Max Wire Speed CNC Spring Coiling Machine

,

1000 Program Storage Volume CNC Spring Coiling Machine

Factory Direct 20T-5A CNC Computer Spring Coiling Machine for 0.2-2.3MM SS Industrial Use Enhanced Spring Forming Product Specifications Model HYD-20T-3A HYD-20T-4A HYD-20T-5A Wire Size 0.2-2.3MM 0.2-2.3MM 0.2-2.3MM Servo Motors 3 axes 4 axes 5 axes Max.Wire Speed 141m/min 141m/min 141m/min Program Storage Volume 1000 1000 1000 X-axis Feed wire motor 2.7kw 2.7kw 2.7kw Y-axis Cam motor 2.7kw 2.7kw 2.7kw Z-axis Core motor 1.0kw 1.0kw 1.0kw A-axis crimped motor / 0.4kw 0.4kw B

Label:

cnc melingkar mesin,

cnc spring membuat mesin,

mesin pegas otomatis
